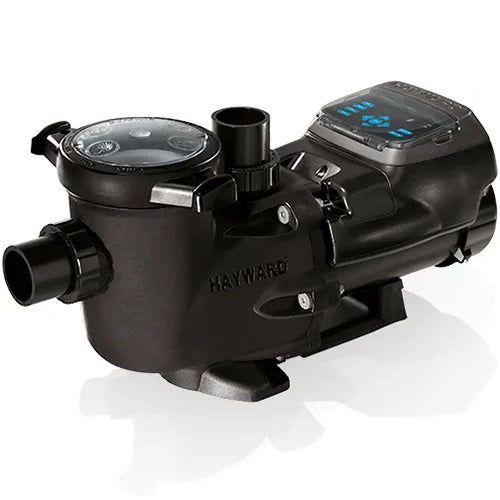

The Hayward HCP 2500 Series TriStar Variable Speed Pump delivers superior fluid dynamics and unmatched hydraulic efficiency for demanding residential and semi-commercial pool applications. Engineered with heavy-duty construction that runs cooler and quieter, it maximizes water flow while significantly lowering energy consumption.
Maintenance is streamlined with an extra-large ribless strainer basket and a quick-sealing Tri-Lock cam and ramp cover that closes in under a quarter turn. Featuring versatile union connections and a self-priming design capable of a 3 m suction lift, it provides dependable performance and straightforward installation.
Key Features
| Brand | Hayward |
| Model | HCP20303 |
| Horsepower | 2.7 HP |
| Voltage | 230/115V |
| Phase | Single Phase |
| Speed | Variable Speed |
| Pool Type | Commercial, Inground |
| Pool Application Type | Residential Pool |
| Weight | 28.6 kg |
| Dimensions (L × W × H) | 76.5 × 34.5 × 40.6 cm |
| Union Connection Size | 2″ x 2-1/2″ |
| Suction Lift | Up to 3 m above water level |
| Certifications | NSF/ANSI Standard 50 Certified, cUL Certified, Energy Star Compliant |
Highlights
- Model: HCP20303
- 2″ x 2-1/2″ union connections for installation and servicing
- Self-priming (suction lift up to 10′ above water level)
- Elevated base ensures ventilation and protection from flooding
- Ribless basket design for debris removal
- Extra leaf-holding capacity extends time between cleanings
- Tri-Lock strainer cover design seals with less than a quarter turn
- 3-year limited manufacturer’s warranty
- NSF/ANSI Standard 50 Certified, cUL Certified, and Energy Star Compliant
Compatibility
Designed for inground residential and semi-commercial swimming pool plumbing systems requiring 2″ x 2-1/2″ union fittings.
Warranty
- 3-year limited manufacturer’s warranty
